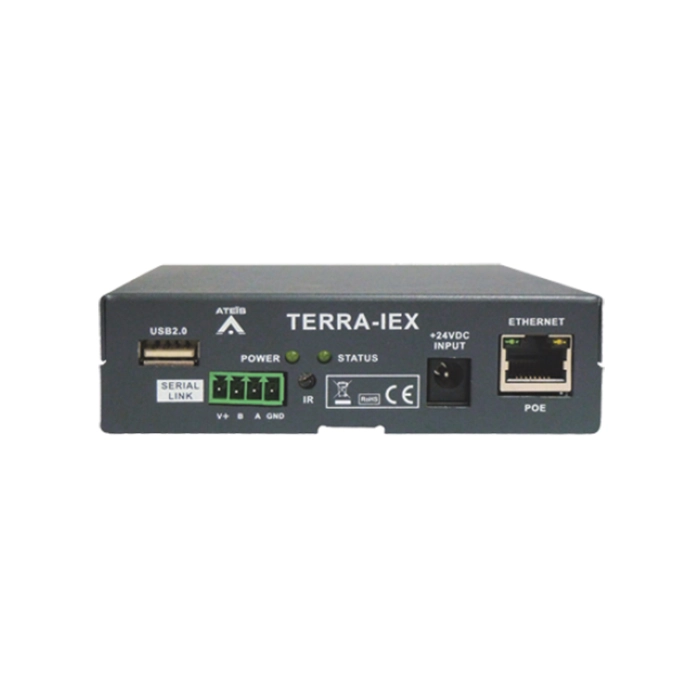

Penton IP Audio Gateway Encoder/Decoder – TERRA-IEX2/G2

Description

The TERRA-IEX2/G2 audio encoder/decoder is a cost-effective, IP-based POE device designed to meet a wide range of professional audio requirements. Equipped with two balanced mic/line inputs and two balanced outputs, it supports full-duplex communication for seamless transmission and reception of audio signals. In addition, it features one relay output, three input control contacts, and two input contact points, making it ideal for applications requiring straightforward analogue audio integration over a network with added I/O flexibility and RS232 control options.

Enhanced with advanced functionality, the IP Audio Gateway TERRA-IEX2/G2 includes an IR receiver/transmitter, an S/PDIF interface capable of handling two channels of uncompressed PCM audio, and a USB port for playback or backup of pre-recorded announcements and playlists. Offering reliable bi-directional audio communication, it can be easily configured through its intuitive web interface, enabling users to manage priorities, scheduling, event triggers, and output levels. The device also supports remote volume and channel selection via the RAC controller, ensuring precise control and versatility across a variety of installations.

IP Audio Gateway Features:

• Two balanced mic/line inputs
• Two balanced outputs (one stereo and two mono).
• Headphones with stereo output (3.5mm mini-jack).
• Transceiver digital S/PDIF optional 1
• Audio inputs/outputs: maximum level +5 dB, bandwidth 20 Hz ~ 20 kHz
• If POE isn’t available, you can use a 24VDC power supply.
• Decoding of AAC+ and MP3 codecs G.711,G.722,G.726,G.727,G.729 as well as G.722,G.726,G.726,G.727,G.726,G.726
