Uniview Video Decoder DC5504-E-V2 4 HDMI Output

Description

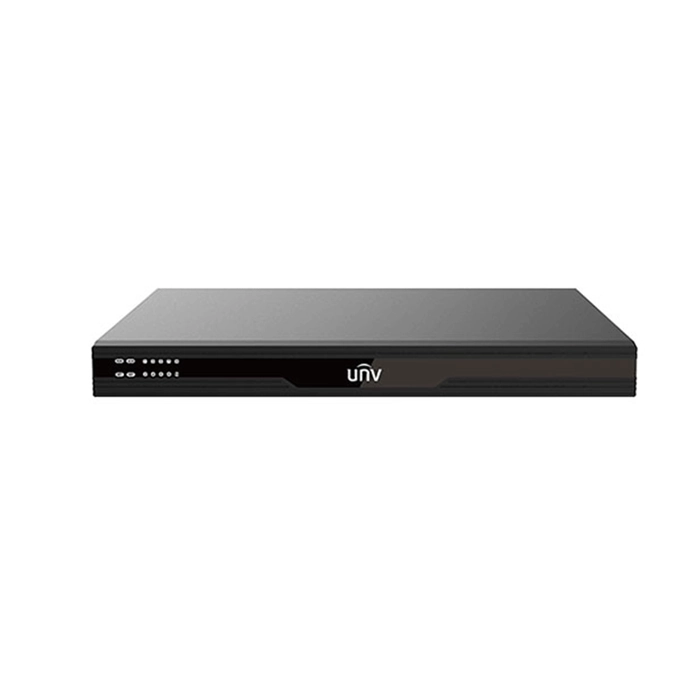

Uniview Video Decoder DC5504-E-V2 is a compact powerhouse that transforms any HDMI source into crystal‑clear 4K output – delivering 3840×2160 pixels at 60 Hz with minimal latency. Designed for security centres and large video walls, it decodes up to ten streams simultaneously while keeping the signal sharp and reliable. The unit supports H.265, H.264, MPEG‑4, MPEG‑2 and MJPEG codecs, ensuring seamless integration with existing surveillance gear.

Backed by a robust 10 GbE Ethernet interface and full ONVIF compliance, the decoder delivers reliable, low‑latency video even over demanding networks. Its dual HDMI inputs support up to 1920×1080@60 Hz, while the multiple HDMI outputs allow flexible split‑screen layouts or single‑large displays. With integrated audio and alarm ports (currently reserved for future use), users can customise setups without extra hardware, making it ideal for both small sites and sprawling command centres.

Video Decoder DC5504-E-V2 Features:

• Dual HDMI inputs delivering up to 1920×1080 @ 60 Hz each.
• Up to ten HDMI outputs with 3840×2160 @ 60 Hz or 1920×1080 @ 60 Hz resolution.
• Decode up to ten high‑definition streams simultaneously in H.265, H.264, MPEG‑4, MPEG‑2 and MJPEG formats.
• Flexible split‑screen layouts: 1/2/3/4/6/7/9/16 for single or multi‑display configurations.
• Full ONVIF compatibility and multicast support for seamless network integration.
• Integrated audio input (2 ch, reserved) and 3.5 mm output (1 ch).
• RS‑232 / RS‑485 serial ports plus a Gigabit Ethernet interface with auto‑MDIX.
