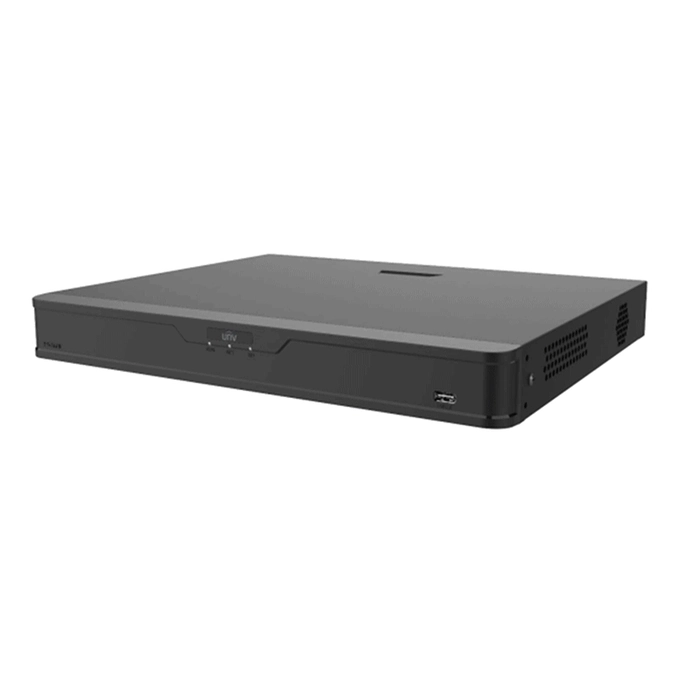

Uniview XVR302-16U3 4K XVR 16CH AI Human Detection

Description

The XVR302-16U3 4K XVR gives you crystal-clear video across 16 channels, letting you monitor every corner of your site in stunning 4K resolution. With support for AHD, TVI, CVI and IP cameras, it seamlessly integrates new and legacy equipment. The long-range coaxial capability means wider coverage without extra cabling, while the HDMI/VGA outputs deliver high-definition feeds to any display. It also offers dual output, so you can monitor on multiple screens simultaneously.

Built on industry-standard H.265/H.264 codecs, the XVR302-16U3 provides efficient compression while preserving sharp detail – perfect for high‑traffic sites or remote monitoring. Its robust chassis and 112 Mbps throughput ensure reliable operation even when all channels run at full frame rates. The device complies with ONVIF RTSP protocols, making it a future-proof choice that works seamlessly with your existing network infrastructure.

XVR302-16U3 4K XVR Features:

• 16-channel BNC input that accepts AHD, TVI, CVI, CVBS and IP cameras for versatile connectivity.
• Dual 4K HDMI output (3840×2160) plus simultaneous VGA/HDMI outputs – display crisp feeds on any monitor.
• Long-range coaxial transmission up to 1 km, with one-way audio support over 16 coaxial channels.
• Optimised H.265/H.264 compression and ONVIF RTSP compatibility deliver sharp detail whilst minimising bandwidth usage.
• Incoming bandwidth of 80 Mbps (112 Mbps after conversion) and outgoing capacity of 160 Mbps – smooth multi‑stream playback.
• One-way audio on 16 channels; two-way audio via a single RCA channel for clear communication.
• FTP snapshot scheduling up to 704×576 resolution – capture key moments automatically.
