Advanced MxPro MX-5401 Apollo/Hochiki Protocol

The Advanced MxPro 5 series is fully expandable from 1 to 4 loops and supplied with 4 on-board sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.

The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end-user operation.

Powerful cause-and-effect programming and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the on-board alphanumeric keypad, or PC-NeT configuration software.

PC Software

An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different Programmes to include a configuration, service, logo and virtual panel tool to allow the flexibility of the equipment to be fully explored.

Network

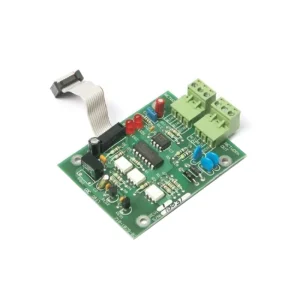

Simply adding a network card allows the panel to communicate with any other MxPro 5/MxPro 4 fire panel, remote terminal, or network peripheral, such as, ip Gateway™ or BMS/graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault-tolerant loop or radial format.

Advanced MxPro MX-5401 Specifications:

• Apollo/Hochiki Protocol
• 1-4 loop addressable fire control panel c/w 1 loop card in large enclosure
• Up to 254 devices per loop (protocol dependent)
• Up to 200,000 devices per network
• Networkable up to 200 nodes
• Built in voltage and current meters
• On board or optional remote battery temperature sensor
• Advanced’s simple select and click programming and configuration
• Quick start and protect – A working system after an Auto learn is performed
• 20 built-in, fully programmable LEDs
• 5000 event log entries
• 201 programmable false alarm management areas per panel
• Timed enablement of isolated zones, input and output devices
• Backward compatible with MxPro 4 network
• Approved to EN54 Parts 2, 4 and 13
• Certified by FM Approvals to EN54 Parts 2 and 4
• Autolearn and Loop detection
• Up to 2000 fire detection zones
• True peer-to-peer networking
• Supports intelligent/programmable remote terminals, BMS interface, IP Gateway and I/O Drivers
• Circuit monitoring from any panel or repeater
• Direct USB and RS232 PC connections
• Peripheral expansion built in
• 4 programmable push buttons
• Complete device history from each panel
• Programmable screen logo
• Advanced logic delivering huge configuration opportunities
