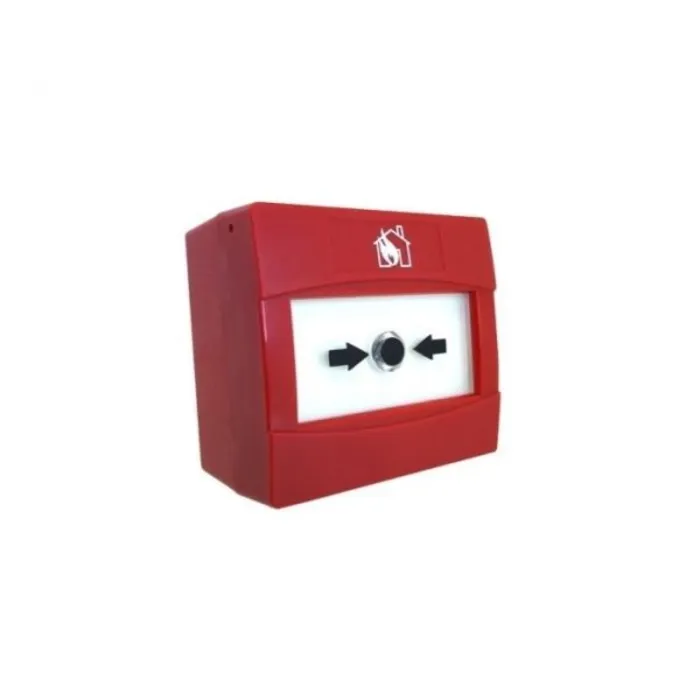

C-Tec Ca Universal Manual Call Point Red Addressable – CA470

Description

The C-TEC CAST Addressable Breaking Glass Unit CA470 is a reliable and durable manual call point designed for seamless integration with C-TEC’s CAST analogue fire alarm systems. Built to meet stringent fire safety standards, it provides a clear and effective way to raise an alarm in an emergency, ensuring fast response and enhanced protection for occupants and property.

Featuring a robust breaking glass mechanism, the CA470 unit combines practicality with ease of use, making it suitable for a wide range of commercial, industrial, and residential environments. Its addressable design ensures accurate system communication and precise identification of activation points, helping to maintain efficiency and safety across the fire detection network.

Manual Call Point Features

• C-TEC’s XFP & ZFP CAST’ Protocol Addressable Fire Panels can be used with this high-quality manual call point.
• LPCB is certified according to EN54 parts 11 and 17 as well as Kiwa Telefication.
• Surface-mount or flush-mountable.
• Short-circuit loop isolation on board.
• Resettable smooth-action element that simulates breaking glass.
• Comes with a key to remove the back box and reset it, as well as a ‘Not In Use’ label.
• When activated, a red LED “alarm ring” illuminates the call point’s face.
• The photoluminescent window is visible up to five minutes.
• 5mA typical alarm current (370uA typical quiescent @ 22-40V DC
• IP67 version
