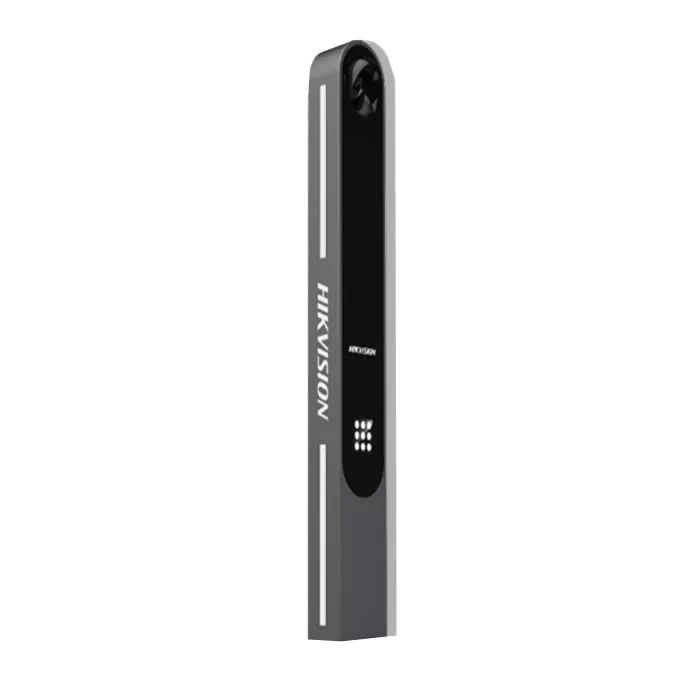

Hikvision 4MP ANPR Traffic Management Bollard – DS-TMC403-E/3106

The Hikvision DS-TMC403-E/3106 is a traffic management bollard that is ideal for use in carparks, car dealerships, or restricted traffic areas. It features a 4MP ANPR camera with a 3.1 to 6 mm lens, a supplement light with 9 bright LED lights, and an integrated loudspeaker. The advanced deep-learning ANPR technology provides various functions, including vehicle license plate detection, vehicle without plate detection and antivehicle following.

• High definition: 4 MP HD camera with max. 2688 × 1520 resolution and 25 fps frame rate.
• Low illumination: High quality imaging with 1/3″ progressive scan CMOS. 0.022 lux low illumination with clearer imaging at night.
• Supplement light: Embedded with 9 bright LED lights, the device has smart supplement light technology, which supports supplement light control according to time and brightness.
• Allow list and blocklist control: Supports importing and comparing the allowlist and blocklist, barrier gate linkage, and working offline.
• Multiple trigger modes: Supports triggering via video, loop, radar, etc. It provides high capture rate and recognition via video. It can capture vehicles without license plates, and the capture rate is higher than 99.9%.
• Anti-vehicle following mode: Supports anti-vehicle following mode via video and radar/loop. The boom pole can keep rising in vehicle queue scenario to solve the congestion.
• Ingress protection: The surface of the host adopts anti-UV and electrostatic spraying, and the level of dustproof and waterproof meets the requirement of IP54 for outdoor devices.
• Easy construction: The all-in-one structure brings simple wiring and convenient debugging, and can shorten 1/3 of the construction period

Hikvision DS-TMC403-E/3106 Specifications:

Camera

• Sensor Type 1/3″ Progressive Scan CMOS
• Max. Resolution 2688*1520
• Min. Illumination Color: 0.022Lux@ (F1.2, AGC ON)
• B/W: 0.011Lux@ (F1.2, AGC ON)
• Shutter 1/30 s to 1/100,000 s
• Day/Night Switch Support

Lens

• Lens Type 3.1 mm to 6 mm


• Image Settings Saturation: 0 to 100
• Brightness: 0 to 100
• Contrast: 0 to 100
• Gain: 0 to 100
• 3D DNR: Off, Normal and Expert modes are selectable.
• White balance: White Balance 1 and White Balance 2 are selectable.

Video

• Video Bit Rate 32 Kbps to 16 Mbps

Network

Protocol TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP Upload Pictures

Interface

• Trigger Input 2-ch triggered/alarm inputs
• Trigger Output 2-ch relay outputs, supporting rising of barrier gate boom pole
• Communication Mode 1 RJ45 10M/100M Ethernet port
• RS-485 1 RS-485 Port

General

• Working Temperature & Humidity -25°C to 70°C (-13°F to 158°F)
• 90% or less (non-condensing)
• Power Supply 220V AC
• Working Consumption 35W Max

Approval

Security User Authentication, Heartbeat, NTP

Smart Function

• Vehicle Type Recognition ANPR
