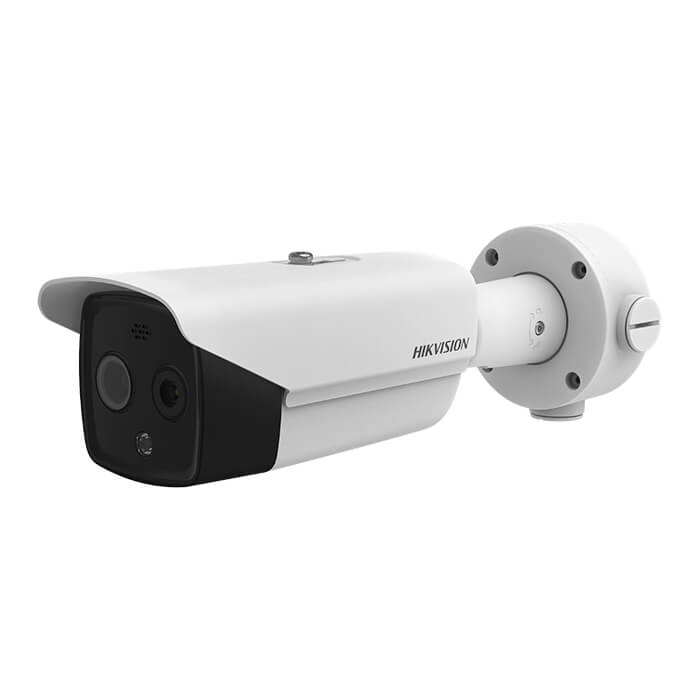

4MP Hikvision POE CCTV System DS-2TD2617-3/PA Bullet 3.1mm Lens 40m IR

Description

Hikvision POE CCTV System DS-2TD2617-3/PA Thermal Bi-spectrum Network Bullet Camera, equipped with a built-in GPU that supports an intelligent behaviour analysis algorithm, can realize high-precision VCA detection and real-time alarm.

Protection Level IP66 Standard, Illumination Colour: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON), and Temperature exception alarm are other Hikvision POE CCTV System key features.

The Advantages Of Hikvision POE CCTV System DS-2TD2617-3/PA

• Protection Level IP66 Standard
• Optical Module
• Image Sensor 1/2.7″ Progressive Scan CMOS
• Resolution 2688 × 1520, 4 MP
• Shutter Speed 1s to 1/100,000s
• Focal Length 4 mm
• Field Of View 84° × 44.8° (H × V)
• IR Distance Up to 40 m
• Aperture (Range) 6
• WDR 120 dB
• Age processing technology: adaptive AGC, DDE, 3D DNR, NETD ≤ 40 MK (@25 °C, F# = 1.1)
• Fire detection algorithm
• Bi-spectrum image fusion, picture-in-picture preview
• Strobe light and audio alarm
• Support temperature screening
• Support audio alarm
• Bi-Spectrum Image Fusion Display the details of the optical channel on the thermal channel
• Picture In Picture Display a partial image of the thermal channel on the full screen of the optical channel
• Target Colouration Supported in white-hot and black-hot mode

Interface

• Alarm Input 2-ch inputs (0-5 VDC)
• Alarm Output 2-ch relay outputs, alarm response actions configurable
• Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input 1, 3.5 mm Mic in/Line in the interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio Output Linear Level; Impedance: 600 Ω

Illuminator

• IR Distance Up to 40 m
• IR Intensity and Angle Automatically adjusted
